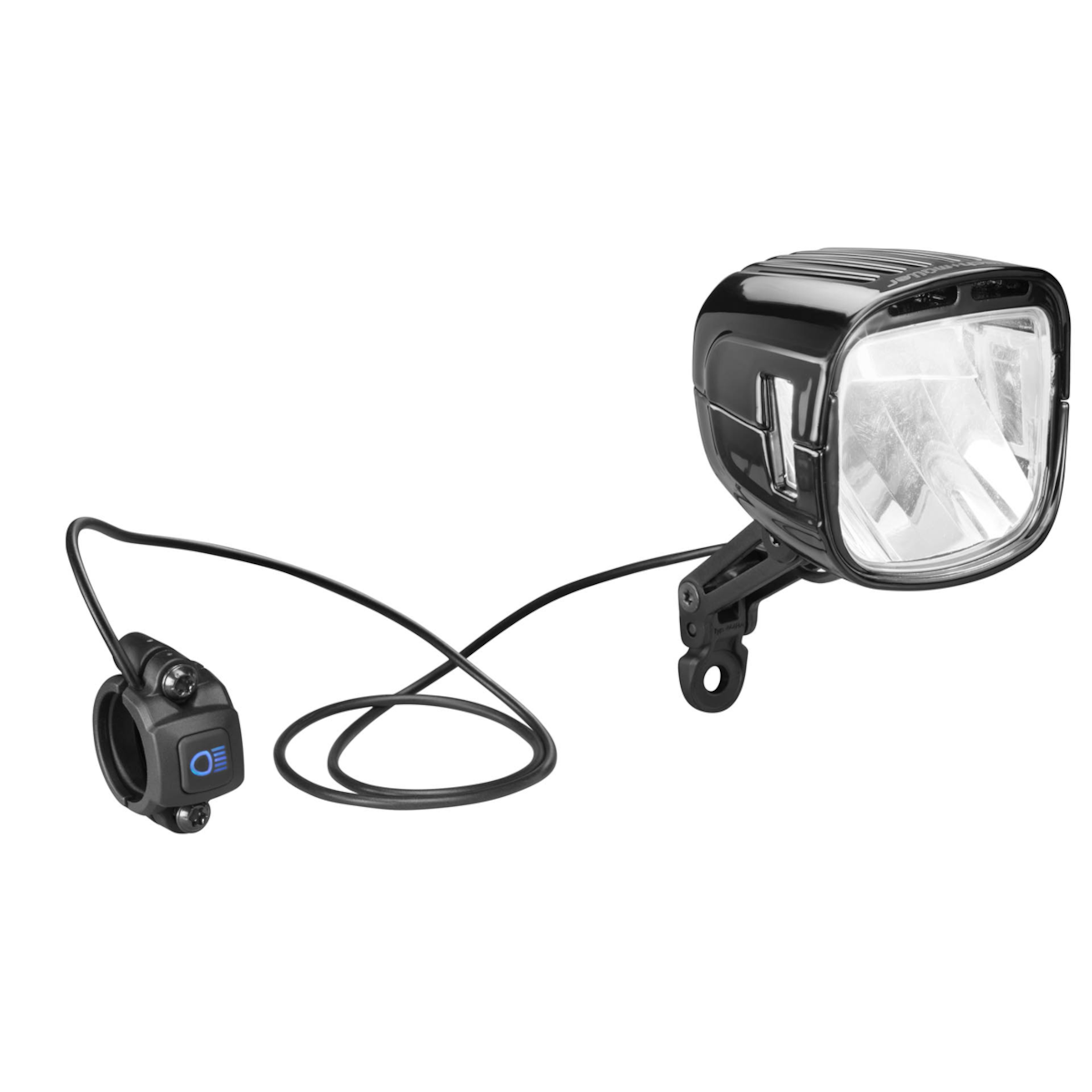

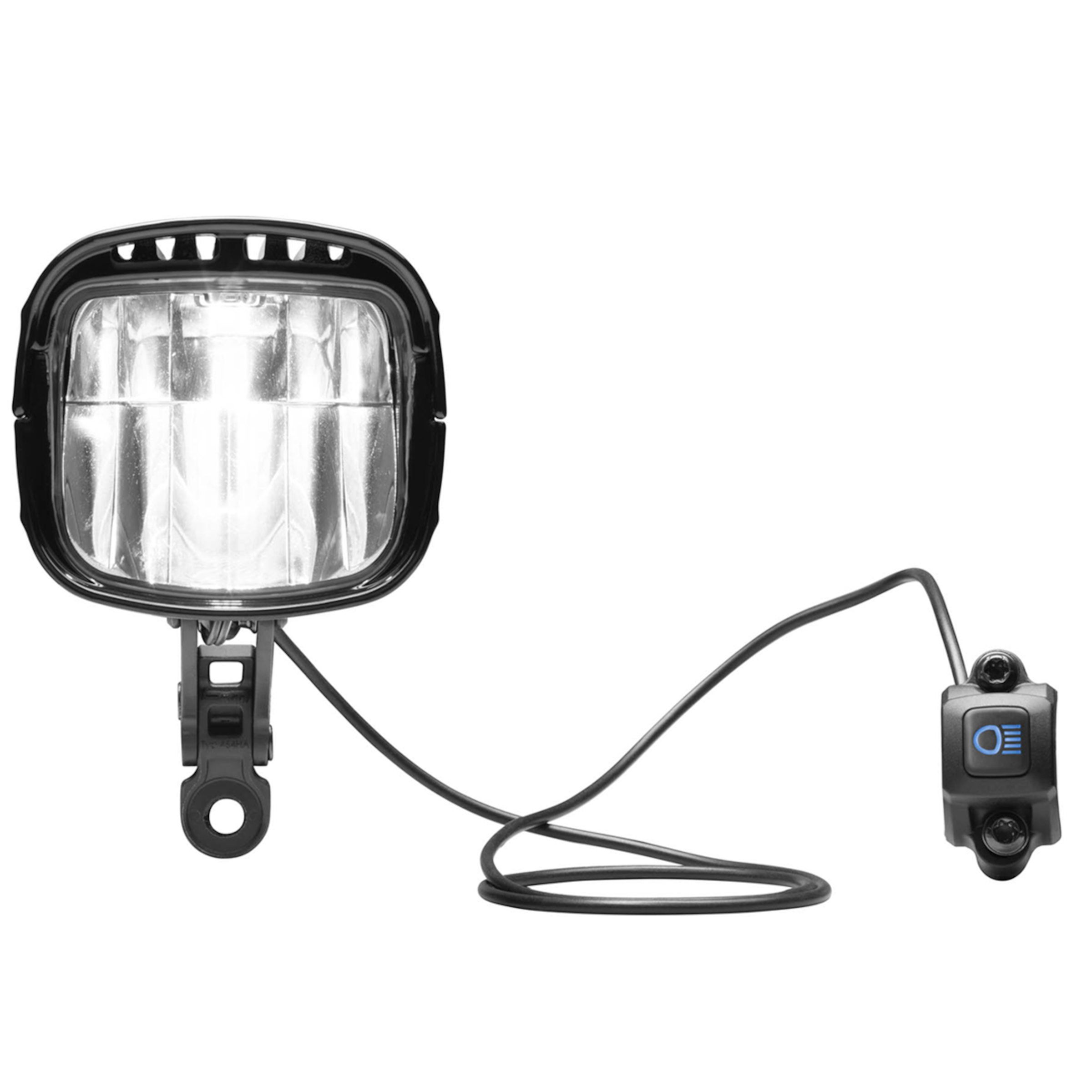

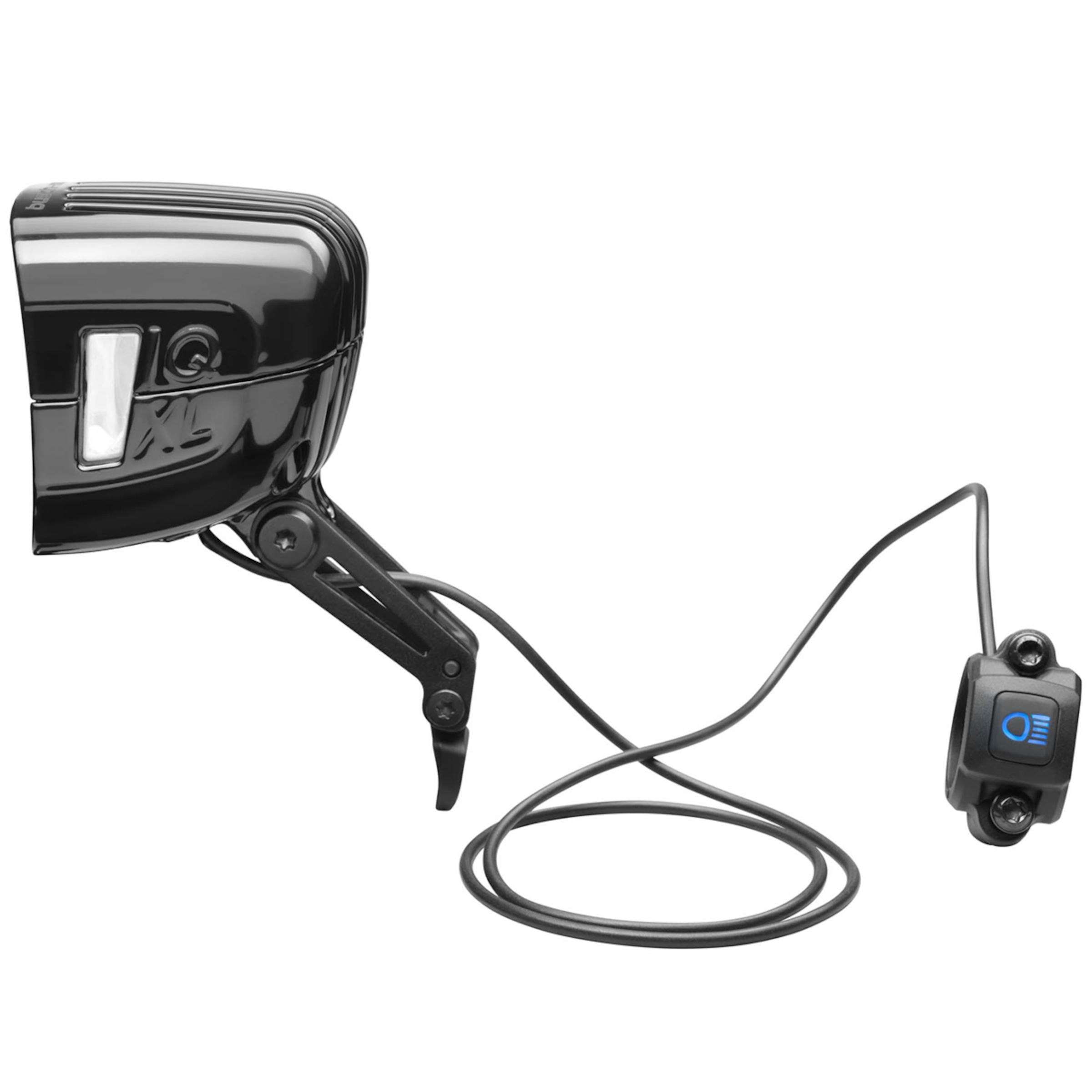

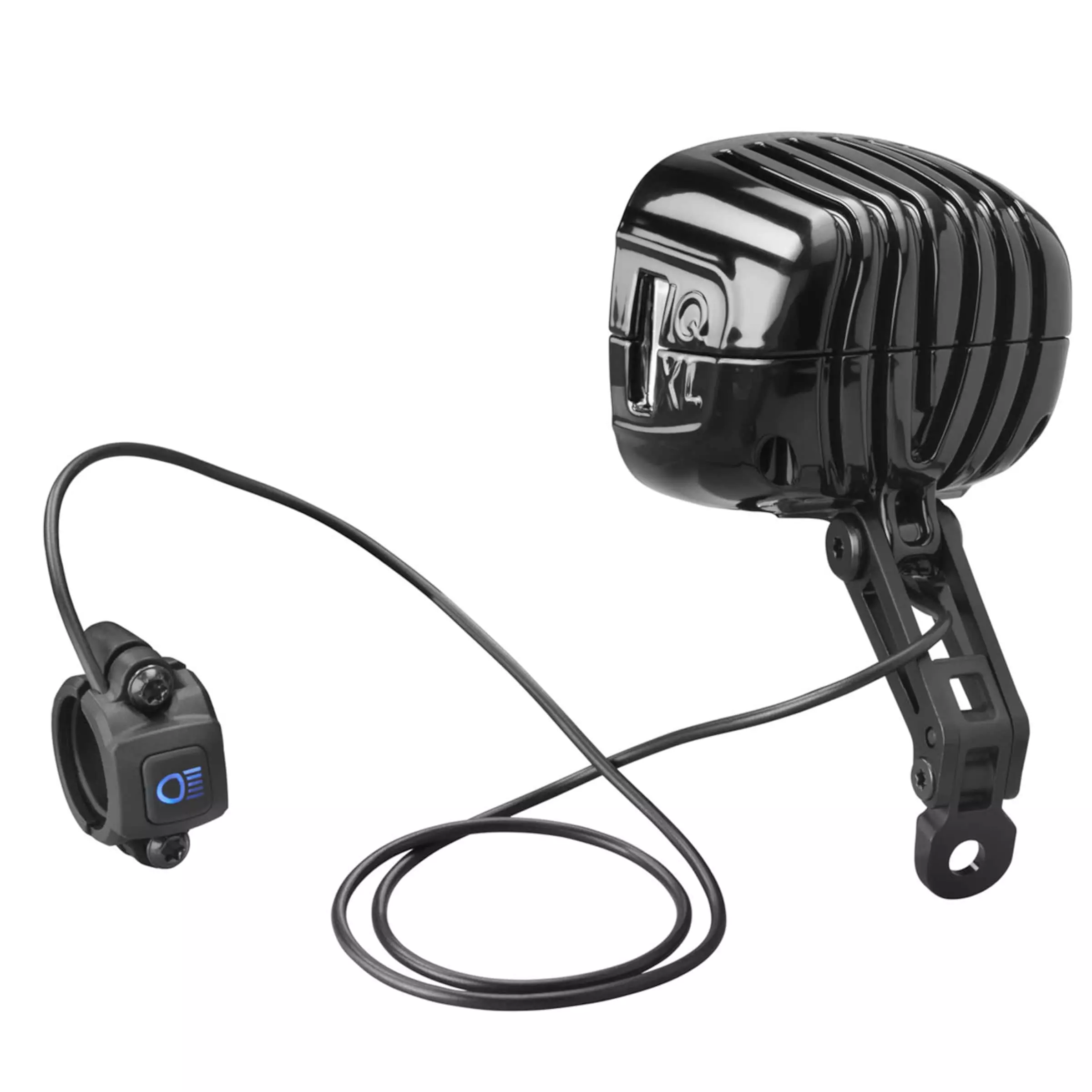

B&M B + M LUMOTEC IQ-XL E-Bike LED Headlight With High Beam Function

The LUMOTEC IQ-XL e-bike headlight is the 2020 flagship of the German lighting specialist Busch & Müller.

The impressive e-bike front light offers you two different light modes. The dipped beam provides generous 300 lux (11 watts) for even illumination and great lighting power. Just like any road-legal headlight, the IQ XL has a distinct cut-off line when used in standard mode. By pushing the ergonomic handlebar switch, the cut-off line is disrupted and additional 250 lux (16 watts) shine as a full beam forward and up. This results in an enormous lighting power and comfort gain. When the light is dipped the handlebar button shines green and then blue when the full beam is on.

The LUMOTEC IQ-XL front light has a black, robust, and lightweight aluminium case and is made for pedelecs limited to a pedal support up to 25 km/h. Attached to the case is an aluminium bracket for mounting the light to your e-bike. At 225 g, this extraordinary product represents a remarkable and stylish front light with an impressive amount of power.

Attention:
As the full beam shines straight ahead, they can cause glare for other drivers or cyclists. That’s why you should always dip your lights with oncoming traffic.

Details:
• Enormously powerful front light for e-bikes / pedelecs limited to a pedal support up to 25 km/h
• Extremely big and even field of vision
• Daytime running light
• Robust aluminium housing
• Light bracket made from high-quality stainless steel
• StVZO-approved for all types of bikes

Technical details:
• Material: aluminium (housing, bracket)
• Suitable for e-bikes* (11 to 48 volts direct current (DC))
• Light modes: dipped beam, full beam
• Brightness dipped beam: 300 lux (11 watts)
• Brightness full beam: 250 lux (16 watts)
• Weight: approx. 225 g

*Tip:
The front light is compatible with a direct current power source (DC) of 11 to 48 volts. Some e-bikes can provide this, but NOT all do!
The light connection of the drivetrain system needs a minimum wattage rating of 16 W!
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!

In the box:
• 1 B+M Lumotec IQ-XL front light for e-bikes
• 1 button incl. cable (length of 65 cm)
