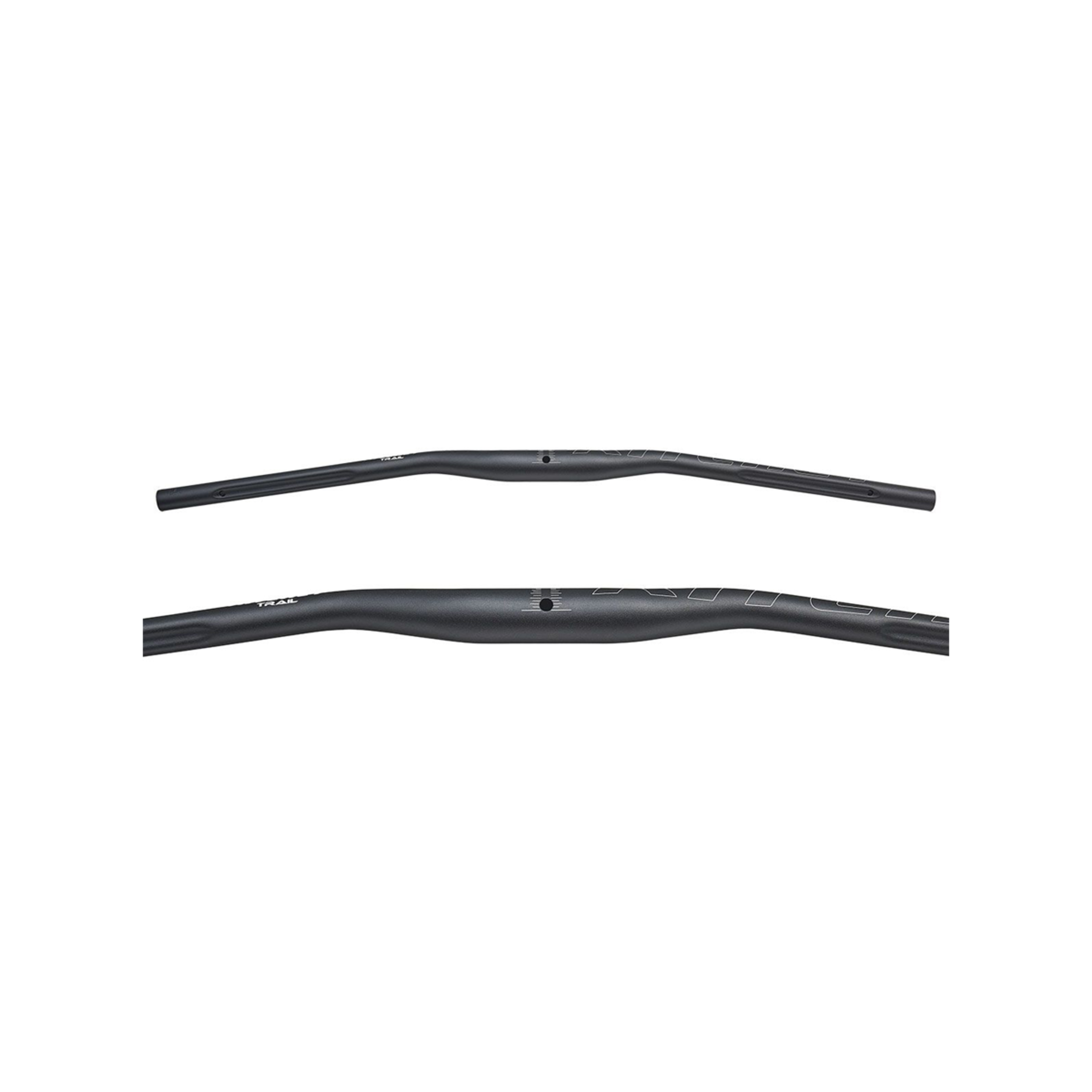

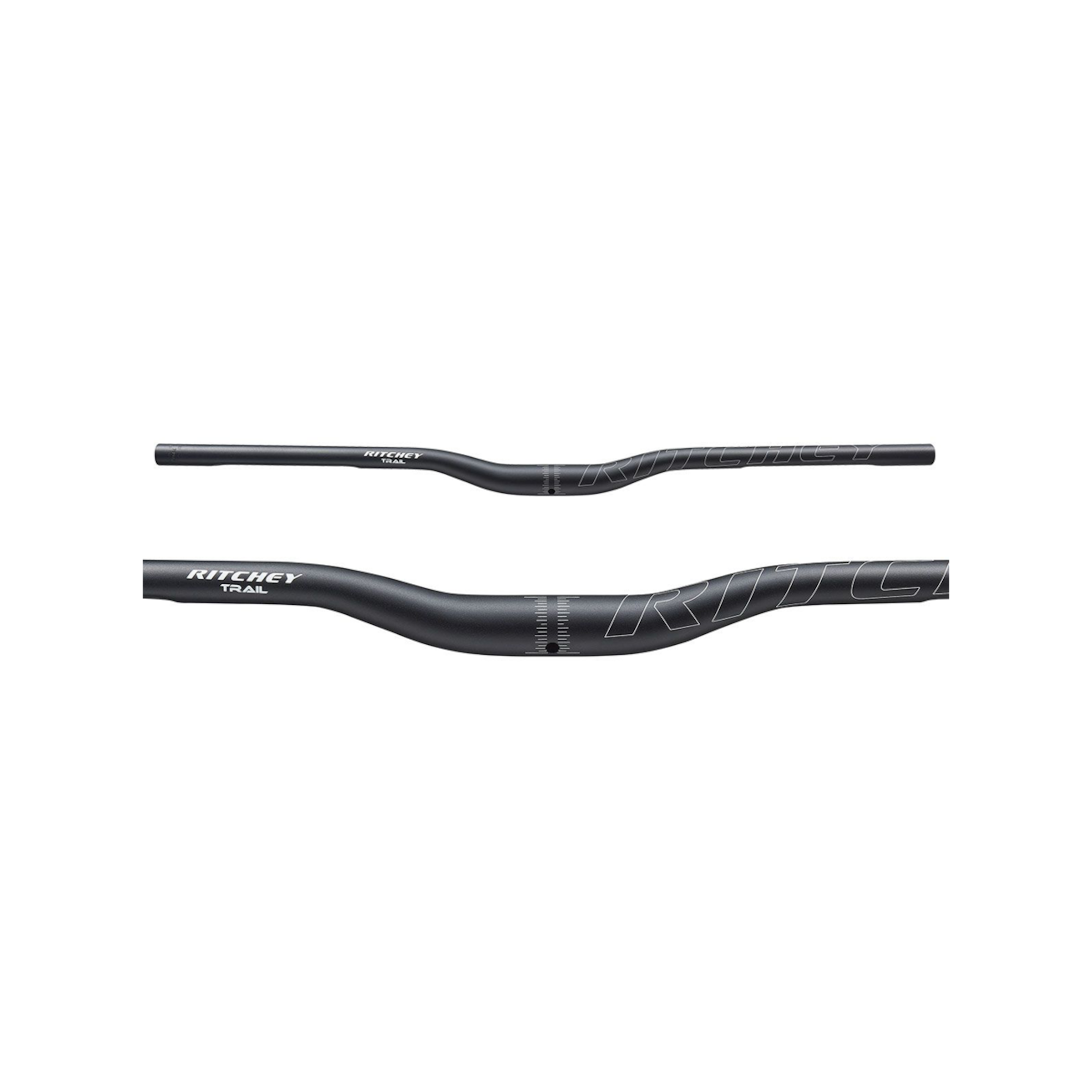

Ritchey Trail Logic-E Low Rizer Handlebars

With the Trail Logic-E Low Rizer handlebar by Ritchey, experience and know-how meet the modern age of e-bikes and electronic shifting.

This handlebar was specially designed by Ritchey for this purpose. It combines clever details such internal cable routing and practical cable ducts under the handles with real stability and comfort.

Details:
• Rizer handlebars especially for e-bikes and electronic gears
• Option of internal cable routing
• Holes drilled into the middle and on the sides
• Cable routing channels under the grips
• Compatible with bar ends
• Compatible with SHIMANO Di2 / STEPS (the SHIMANO EW-SD50 connection cables can be found under prod. code: 1772052)

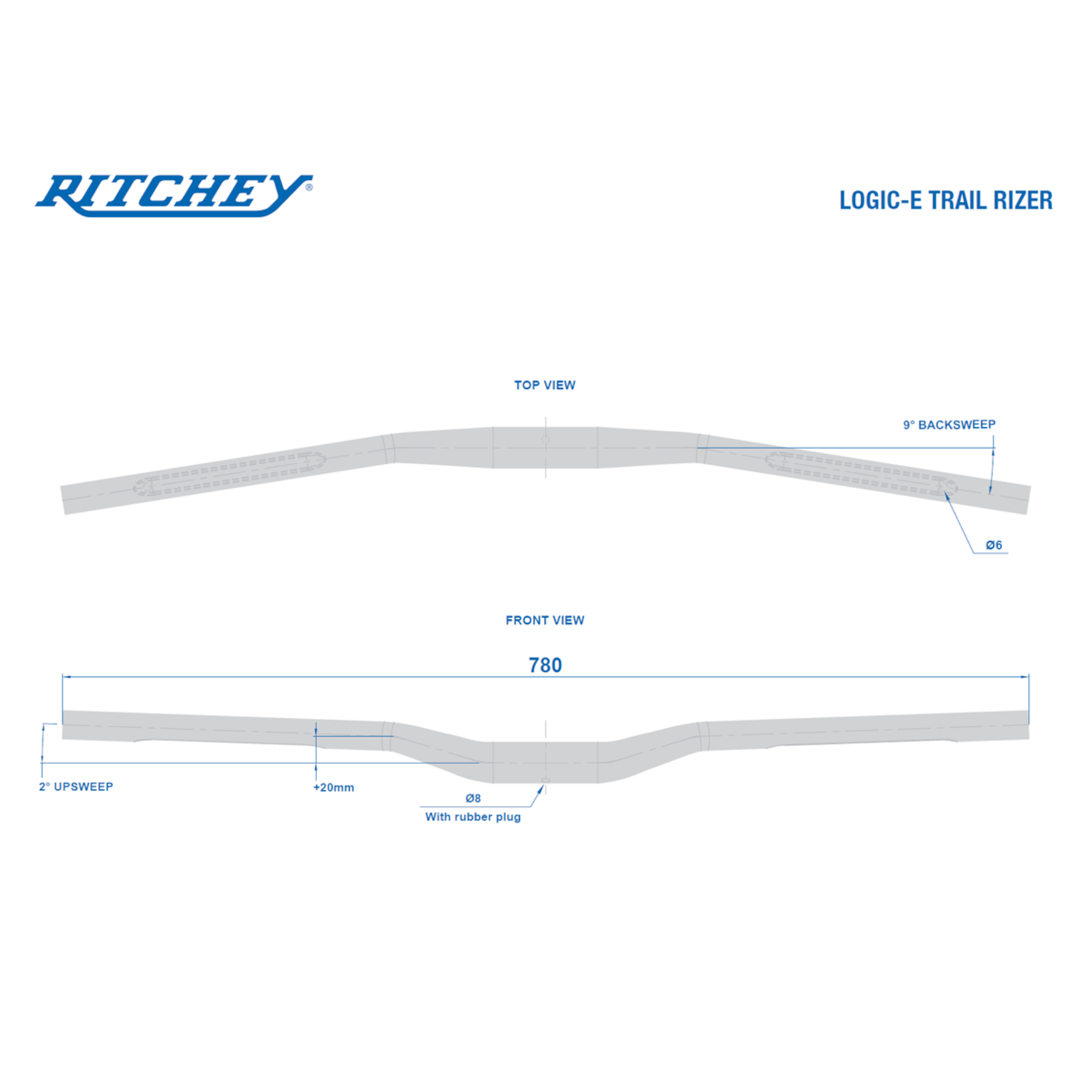

Technical details:
• Intended use: E-bike, E-MTB & MTB Di2 (Cross-Country, Trail, All-Mountain, Enduro)
• Material: 6061 aluminium, double butted
• Handlebar clamp: Ø 31.8 mm
• Width: 780 mm
• Rise: 20 mm
• Upsweep (upward sweep): 2°
• Backsweep / bend (rearward sweep): 9°
• Weight: approx. 325 g

In the box:
• 1 x Ritchey Trail Logic-E Low Rizer aluminium e-bike handlebars

Attention:

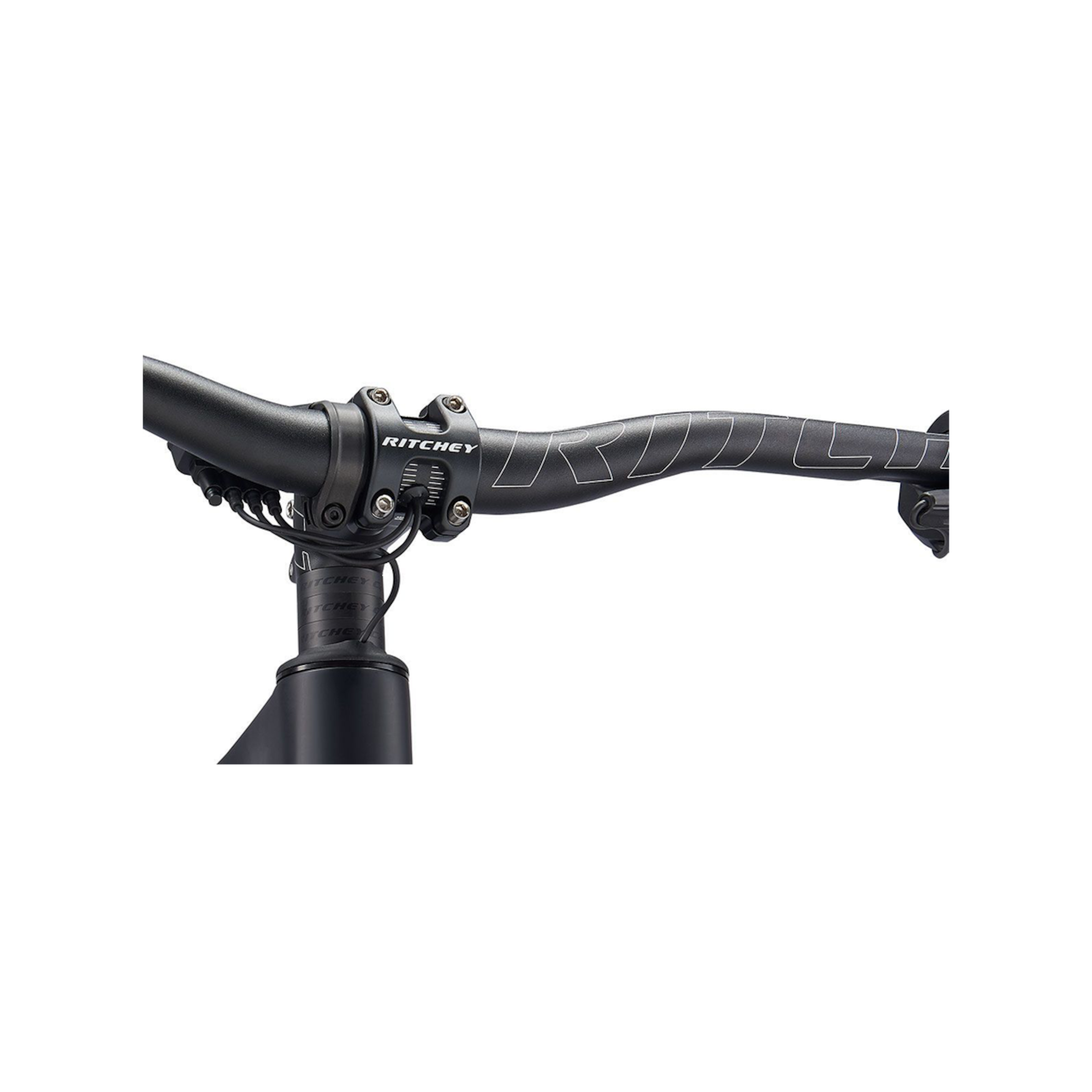

For proper installation including cable routing, stems with an open stem plate are required! You can find a suitable Ritchey C-220 stem, for example, under prod. code: 2259356.
