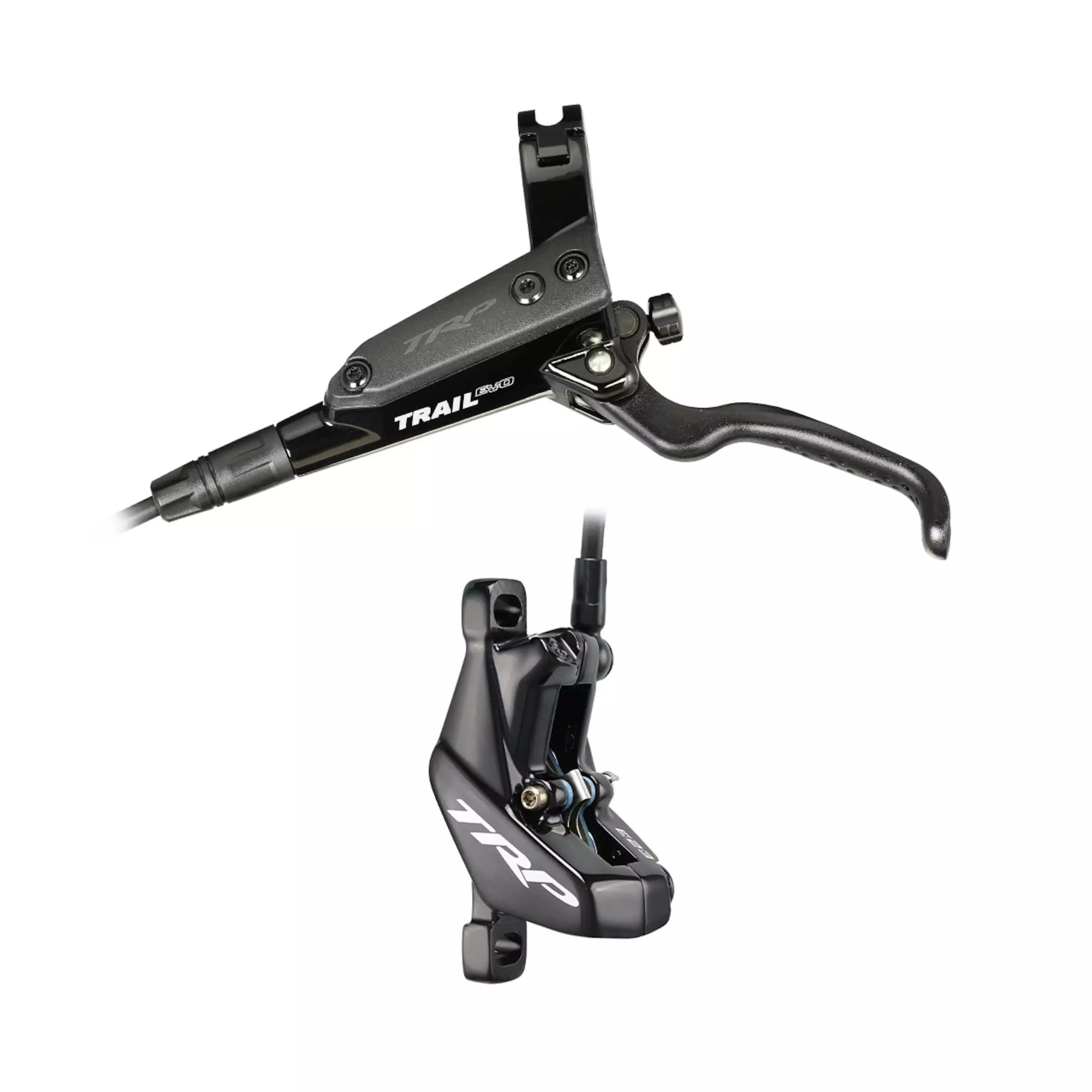

TRP Trail EVO Disc Brake

The TRP Trail EVO four-piston disc brake is based on the technologies that the performance-oriented manufacturer has been using successfully in the DH World Cup for a long time. These were now tuned for the demands of modern trail bikes and E-MTBs.
This way, the Trail EVO brake not only offers excellent braking performance, but also outstanding braking power modulation.
What’s more, the system is designed for disc rotors with a thickness of 2.3 mm. This ensures enormous temperature stability and thus consistently high braking power even under extreme conditions.

Details:

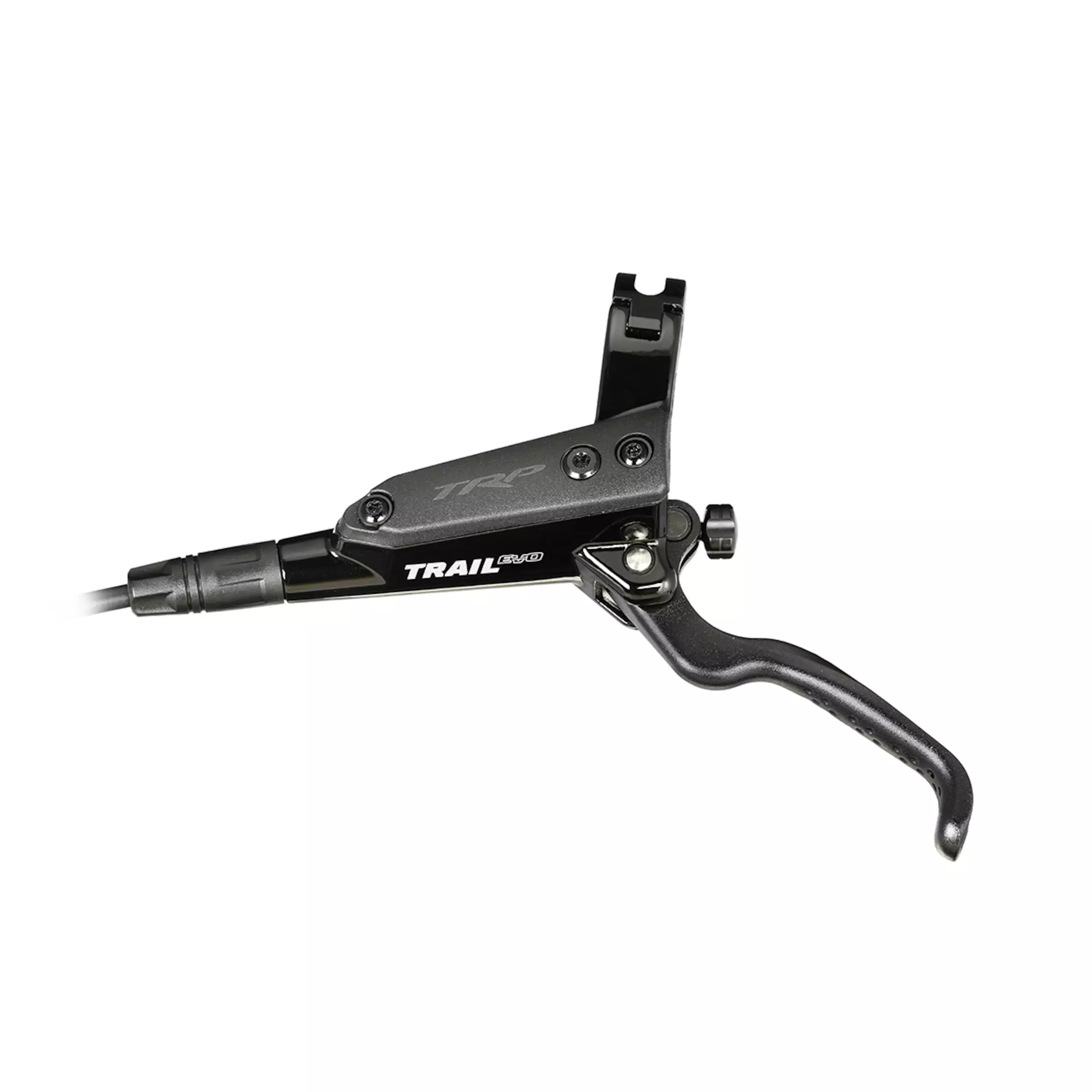

• Ergonomic lever shape and nubby texture for better grip
• Adjustable lever reach and hinged clamp
• 10 mm internal brake lever piston, 5 mm thick hydraulic hoses and stainless steel piston
• High-performance, heat-resistant mineral oil with low viscosity for even better response
• Specially developed for 2.3 mm thick brake rotors*
• Compatible with I-Spec II
• Matt black finish

Technical details:
• Material: aluminium, plastic
• Number of pistons: 4

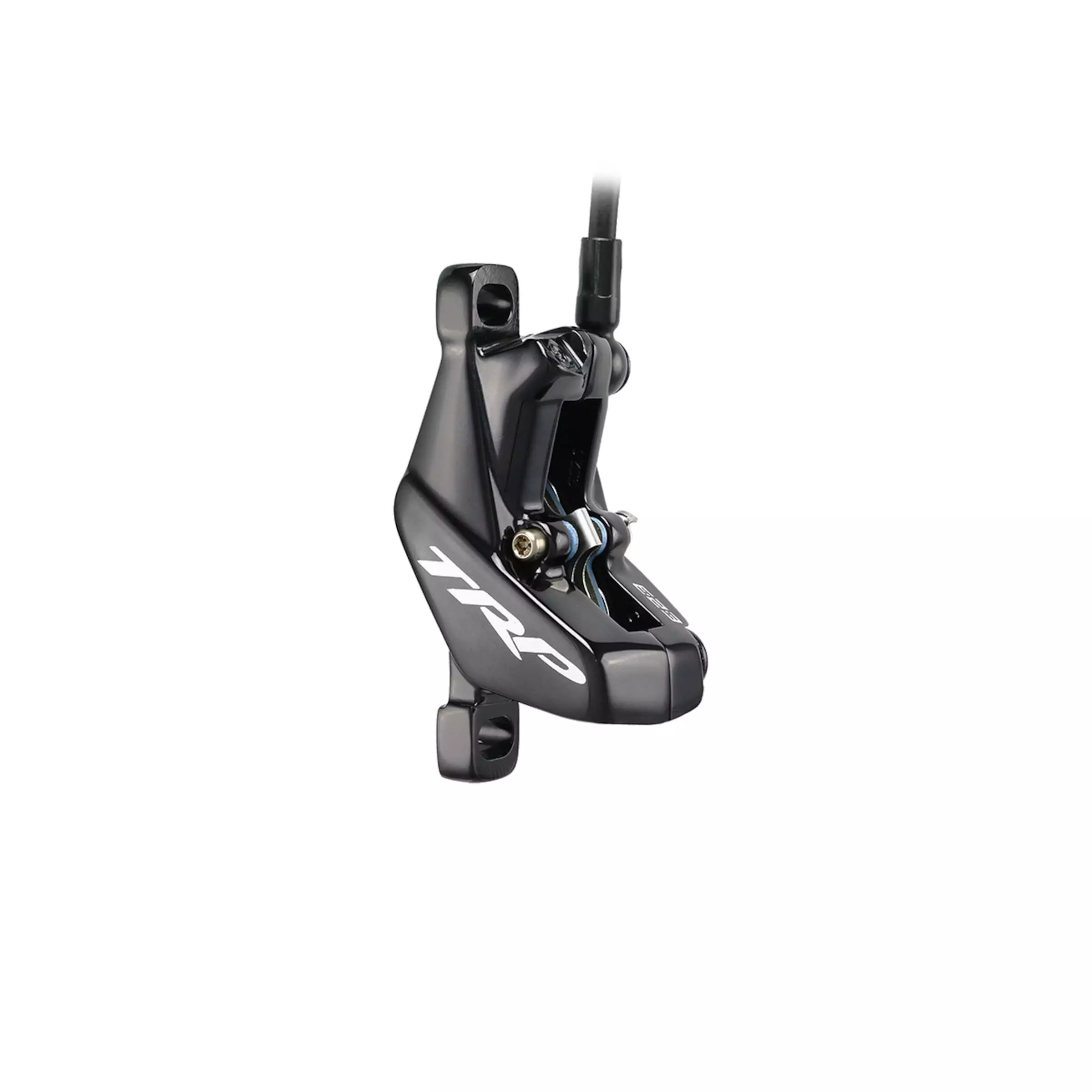

• Brake calliper: post mount
• For handlebar Ø: 22.2 mm
• Brake pads: Resin (organic)
• Brake fluid: TRP mineral oil
• Lever reach adjustment: yes (without tools)
• Contact point adjustment: no
• Shift lever integration: yes (SHIMANO I-Spec II standard)
• Recommended disc rotor: R1 6-bolt (2.3 mm, prod. code: 2329255); R1C Centerlock (2.3mm, prod. code: 2329268)
• Weight: approx. 306 g (incl. 760 mm hose, WITHOUT rotors & discs)

Available versions:
• Left lever (1900 mm hose length)
• Right lever (1900 mm hose length)
Please indicate your choice.

In the box:
• 1 TRP Trail EVO disc brake (filled and bled, ready for installation)
incl. 1 pair of TRP brake pads (organic) as well as olive and insert pin for cutting the brake hoses.

Optional accessories:
• TRP R1 6-bolt disc rotor 2.3 mm (prod. code: 2329255)
• TRP R1C Centerlock disc rotor 2.3 mm (prod. code: 2329268)
• TRP disc brake adapter PM/PM (prod. code: 2329272)
• TRP Basic Bleed Kit (prod. code: 2329273)
• TRP mineral oil (prod. code: 2329288)

*Attention:
ONLY approved for use with 2.3 mm thick disc rotors!
